Dimensions:
Insulation medium:
 Dielectric Constant
Plate number (N):
Plate spacing (D):
   Plate area (A): 　
 Length (overlapping) ( (L):
 Width (overlapping) (W):

   Capacitance : C = pF

NOTES

1.  WHEN USING THE "MILS= .001"  OPTION IF YOU HAVE .010" AS A PARAMETER JUST ENTER 10

2.  N=2 FOR A STANDARD PARALLEL PLATE CAPACITOR (SINGLE LAYER)

3. THE FORMULA IS LISTED BELOW IN INCHES:



      C=0.2248  X K  X A/D  IN PF

WHERE K=DC=DIELECTRIC CONSTANT----(YOU CAN OVERIDE THE DIELECTRIC CONSTANT BY TYPING IT IN FOR THOSE MATERIALS NOT LISTED



       A= AREA=LENGTH (L) X WIDTH (W)

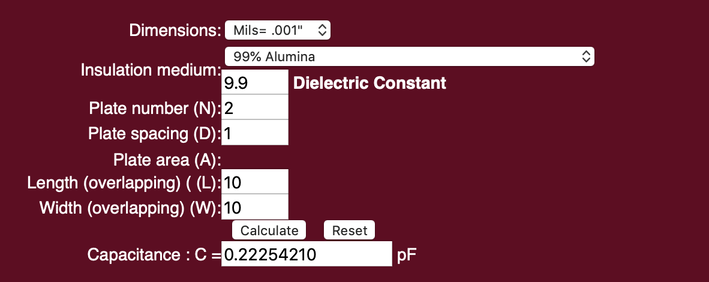

HERE IS AN EXAMPLE USING MILS SHOWING TWO 10 MIL LINES CROSS OVER A 1 MIL DIELECTRIC HAVE ~1/4 PF
