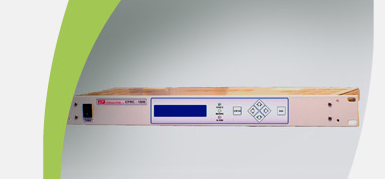

Frequency Up Converter 70MHz to S Band
|
The DTA S.A. Upconverter 70MHz to S Band, DWSB70-DTA1K model, combines the state-of-art of the communications converters, giving great flexibility to the operator.The Upconverter move the frequency band of the IF input signal to the RF output frequency band. The phase noise, amplitude flatness, group delay and spourius output have been considered to achieve an optimal frequency conversion for SATCOM ground station systems.
| ||
----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------

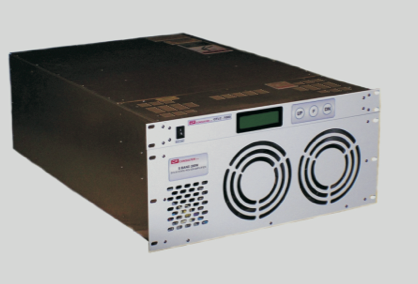

Solid State Power Amplifier ( SSPA ) HPA200-DTA
|
DTA offers the model of Solid State Power Amplifier HPA200-DTA, designed to provide the highest performance for satellite uplink applications.
Its great linearity, protections and control options gives to this equipment the desired flexibility on the SATCOM ground stations
| ||
----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
Redundance Switchover RSWOHPA-DTA1
|
DTA S.A. offers the Redundance Switchover Unit model for SSPA designed to provide the highest quality and performance for SATCOM ground station systems.
The Redundance Switchover Unitis desing to command two SSPA Unit connected to a Redundance Circuit for satellite Up.links. The Unit have: Input S-Band Switch Output power S-Band Switch (can be also use in a Hot Stand By configuration through an external load,). Controller, that include: Ethernet & RS-232 interfase for remote control, and display and keyboard for local control.
| ||
